Organic Conductive Polymer

Organic Conductive Polymer: VERAZOL™ Overview
High Conductivity Grade: WED-SMC

PEDOT (poly 3,4-ethylene dioxythiophene) is a polymer material doped with PSS (polystyrene sulfonic acid).

Features

・ Conductive organic polymer with PEDOT as a skeleton having electron conductivity.
・ Achieves high quality and low cost by our original manufacturing technology.
・ Achieves high quality and low cost by our original manufacturing technology
・ Highly transparent and stable antistatic properties without humidity dependence
・ Can be mixed with various binders and can be designed with a wide range of surface resistance values from 103 to 1010Ω.
・ Conductivity 200-300S / cm (when DMSO is mixed).
・ Particle size (D90%) <100-500nm.
・ Having excellent storage stability.

Usage instructions

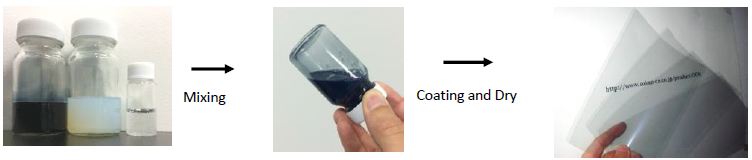

・ Functional paint can be created by mixing resin, surfactant, etc. with VERAZOL WED-SMC.

Functional coating material

(1) Prepare a resin to be mixed with VERAZOL WED. Please prepare additives etc. if necessary.
(2)You can make a Conductive ink by mixing.
(3) Antistatic treatment is possible for various materials by applying the diluted solution (2) to a film or the like and drying it as necessary.

* There are products contain binders and surfactants.

Water-based conductive polymer「IW-3035T」

Example of use

Various functionality can be added by selecting the resin that suits the purpose.

    Examination example (1): Application to elastic materials

        By blending with a flexible resin, it is possible to antistatic treatment the elastic base material.

It develops a stable resistance value even after stretching.

    Study example (2): Antistatic addition to emulsion adhesive.

        Since it is a water-based conductive polymer, it can be added to emulsion adhesives.

    Examination example (3): It can be made into Ink according to the printing method such as Screen printing, Gravure, Offset and inkjet coating.

・ Compatibility with water-dispersed resin

Resinionic Compatibility
Original After neutralization
Nonionic Good Good
Anion (-SO3Na) Good Good
Anion (Other) X Good
Cation X X

Neutralization conditions: Adjust WED-SMC to pH 4-7 with aqueous ammonia

Compatibility: Good Stable dispersion X agglomerates, layer separation

・ Formulation example and surface resistance value when a resin with a solid content of 20% is used

WED-SMC Binder resin Diluted solution Conductive additive Surface resistance
value (Ω / sq.)
*1 (Water/IPA=1/1) *2 *3
60 35 300 20 10^4~10^5
30 55 450 30 10^5~10^6
20 65 550 35 10^6~10^7
* 1 Water-based resin with a solid content of 20%
* 2 Uses DMSO (Dimethyl sulfoxide)
→ EG (ethylene glycol) and NMP (N-methylpyrrolidone) have the same effect.
* 3 Coating thickness wet 12 μm, drying conditions: 90 ° C x 2 min → DRY film thickness 0.25 μm

・ Formulation example and surface resistance value when a resin with a solid content of 20% is used

Formulation example: Prepare a blended solution of WED-SMC / resin with 20% solid content / DMSO = 50/38/12, and dilute with water: IPA (1: 1).

DRY
Tickness
Dilution
amount
Surface resistance
(Ω/sq.)
0.08μm X12 106
0.10μm X10 105
0.25μm X4 104
0.50μm X2 103
1.00μm Original 103

* 1: Coating film preparation conditions: coating thickness wet 12 μm, drying conditions 90 ° C x 2 min
