Organic Conductive Polymer: Verazol® WED Series
High Conductivity Grade: WED-SM

High conductivity grade WED-SM is a polymeric material fabricated by doped PEDOT (poly 3,4-ethylenedioxythiophene) with PSS (polystyrene sulfonate) and PTS (para-toluenesulfonic acid).

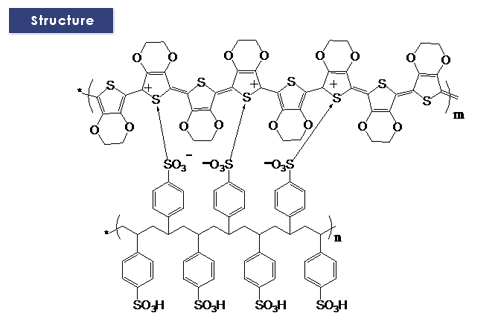

Structure

Features

  • High-purity product created by removing ionic impurities by our unique refining method
  • Realizes antistatic properties by adding only a small amount
  • Can be adapted to various printing methods by mixing with various types of binders
  • Provides highly transparent and low-haze coatings by mixing with various types of binders
→A wide range of designs from 10^3~9Ω/□ is available by changing the binder compounding ratio

Example of use

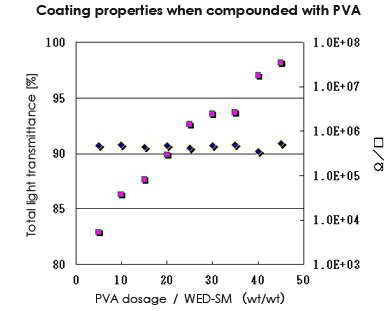

Coating properties when compounded with PVA

WED-SM:PVA(wt ratio) Surface resistance Ω/□ Transmittance % Haze
1:5 5.352×10^3 90.7 1.2
1:10 3.722×10^4 90.8 1.1
1:15 8.211×10^4 90.6 1.2
1:20 2.925×10^5 90.7 1.2
1:25 1.394×10^6 90.5 1.1
1:30 2.473×10^6 90.7 1.2
1:35 2.624×10^6 90.8 1.2
1:40 1.823×10^7 90.2 1.2
1:45 3.477×10^7 90.9 1.2
(Coating conditions)
Test composition: (Solid content weight ratio: 1/Arbitrary value) 5% DMSO added Solid content: 2.5%
Base material: PET; 100 μm; Transmittance = 91.9%; Haze = 1.3
Coating: Bar coater #4;   Drying: 90°C × 10 min
Haze and transmittance measurement: Haze Meter HM-150 (Murakami Color Research Laboratory)
Surface resistance measurement: Loresta GP (Mitsubishi Chemical Analytech)
