JET Tape® “J-10 Series”
The acrylic foam-based, double-sided “JET TapeR” is a flexible tape with high adhesive strength, suitable for a wide variety of industrial applications.
The absence of organic solvents throughout the manufacturing process means that the double-sided JET TapeR is environmentally friendly.
The J-10 adhesive tapes for special applications offer waterproofing, impact resistance and shape adaptation performances.
Features
①Strong adhesion to various types of plastics
The tape also offers strong adhesion to engineering plastic, acrylic, polycarbonate and other resins.
②Excellent shock absorbing and shape adaptation capabilities
With its exclusive substrate structure and high interlaminar strength, the tape offers excellent impact resistance and shape adaptation performances.
③Waterproofing performance (ideal as waterproof sheet; waterproof test: IPX6-7)
The tape is highly resistant to water, offering excellent sealing performance.
④Excellent punching quality
The tape offers proven punching quality in slim bezel applications.
Product range
| Part number | J-1015FM | J-1020FM | J-1030FM | J-1015G | J-1020G | J-1030G |
|---|---|---|---|---|---|---|
| Thickness（mm） | 0.15 | 0.20 | 0.30 | 0.15 | 0.20 | 0.30 |
| Color | White | Gray | ||||
Product data
| Part number | J-1015FM | J-1020FM | ||
|---|---|---|---|---|
| Thickness | mm | 0.15 | 0.20 | |
| Tensile strength *1 | N/cm2 | 114 | 125 | |
| Rupture elongation *2 | % | 850 | 900 | |
| Adhesive strength *3 |
SUS | N/10mm | 12.4 | 13.0 |
| Acrylic | 7.9 | 8.4 | ||
| Polycarbonate | 9.8 | 10.1 | ||
| Holding power *4 | mm | 0.9 | 1.1 | |
| Shear strength *5 | N/㎝2 | 130.0 | 163.0 | |
| Peeling resistance under constant load *6 |
mm | 27.0 | 8.0 | |
Measuring conditions:
- ※1
- Test piece: 25x30 mm. Tensile velocity: 300 mm/min. Maximum tensile strength measured based on the cross-sectional area of the tape.
- ※2
- Test piece: 25x30 mm. Tensile velocity: 300 mm/min. Elongation at rupture calculated based on the original length.
- ※3
- A test piece affixed to 50-um-thick aluminum foil was attached to the joining piece using a 2-kg roller and was left in position for 20 minutes at an ambient temperature of 23°C. The adhesive strength was then measured by pulling the test piece at 90° at a velocity of 300 mm/min.
- ※4
- The holding power was measured at an ambient temperature of 80°C by attaching a 2-kg weight for 60 minutes to the test piece and a piece of SUS bonded together over an area of 20x25 mm.
- ※5
- The maximum shear strength was measured on a test piece and a joining piece bonded together for 72 hours over an area of 15x15 mm by pulling it at a velocity of 50 mm/min.
- ※6
- The peeling resistance was measured on a test piece and a piece of SUS bonded together over an area of 20x50 mm by attaching a 500-g weight at 90° for 60 minutes at an ambient temperature of 80°C.
- ※
- The values in the table above are representative of those typically obtained in Soken tests and can vary in actual applications.

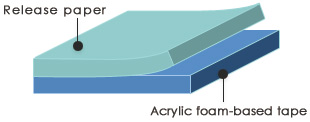

Structure
Taping procedure
- Clean the surface using solvent or other cleaning agents to remove dirt, rust, oil and other contaminants.
- Apply the tape and press it with a finger or a roller to set it firmly in place.
- Remove the release paper. Place the joining piece on the tape and press it firmly with a roller or other means.
Applications
・To fix display bezels on mobile phones and other devices and/or for waterproofing
・To fix engineering plastic parts
